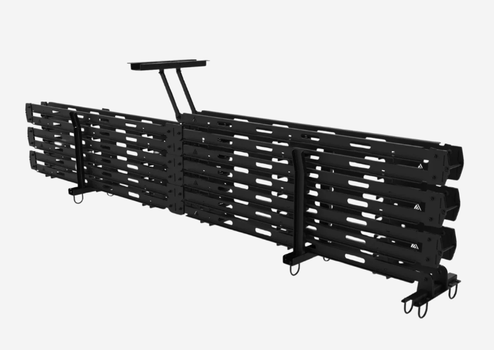

Admiral Staging L cable guide base 3m - H 19.5m black

The L cable guide is a great choice for high-demand setups that need to manage many cables efficiently. With its wide 108 mm gutter, it can hold a large number of cables at once, reducing the need for multiple guides. For even greater capacity, an XL version is available with 220 mm wide gutters.

To keep power and signal cables separate, a divider insert can be added to the L guide. The cable guide can be mounted on a 30 truss using U-bolts (included) and on a 40 truss with a compatible adapter (available separately).

The L cable guide is lightweight, flexible and strong. Its sections are made from aluminium to keep the weight down, while the hinges are steel. The centre hinge bends up to 40 degrees for extra flexibility, while the corner hinges move up to 170 degrees. A reinforcement rod in the corner hinges also serves as a guide for cable length. To improve stability, the top hinge includes length strips that reduce lateral movement during operation.

Specifications

Base

3 meter

Height

19.5 meter

Colour

black gloss 30% (RAL 9005)

Material (length parts)

aluminium

Material (hinges)

steel

Finish

powder coated

Weight

70.7 kg

Max load

100 kg/m
