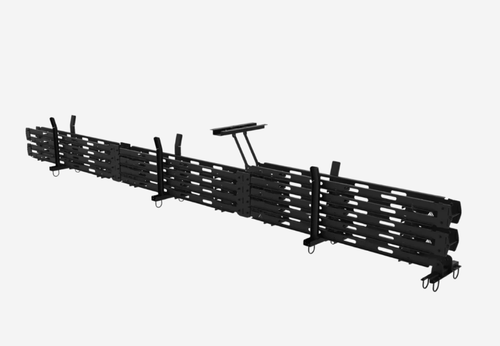

Admiral Staging L cable guide base 4.5m - H 19.5m black

The L cable guide is perfect for installations that need to manage many cables. It has a wider 108 mm gutter, allowing it to hold more cables, reducing the need for multiple cable guides. There is also an XL version with a 220 mm wide gutter.

To keep power and signal cables separate, the L guide can be fitted with a divider insert. It can be mounted on truss 30 with the incluided U-bolts or on truss 40 using an adapter (can be purchased separately).

The L cable guide is lightweight, flexible and strong. Its sections are made from aluminium to keep the weight down, while the hinges are made of steel. The centre hinge can bend up to 40 degrees and the corner hinges can move up to 170 degrees for more flexibility. These corner hinges also have a reinforcement rod, which serves as a guideline for the correct cable length. Additionally, the top hinge includes length strips to reduce lateral movement of the truss and cable guide during use.

Specifications

Base

4.5 meter

Height

19.5 meter

Colour

black gloss 30% (RAL 9005)

Material (length parts)

aluminium

Material (hinges)

steel

Finish

powder coated

Weight

70.4 kg

Max load

100 kg/m
