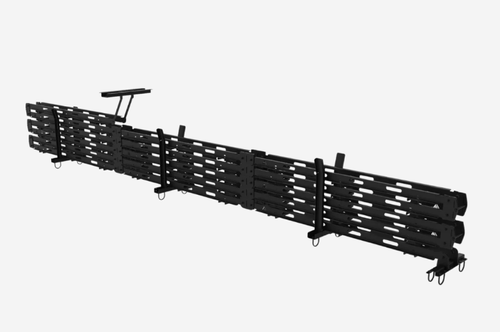

Admiral Staging L cable guide base 4.5m - H 24m black

Managing large numbers of cables in demanding installations is easy with the L cable guide. Its wide 108 mm gutter provides plenty of space for multiple cables, minimizing the need for extra guides. For even larger setups, an XL version with 220 mm gutters is also available.

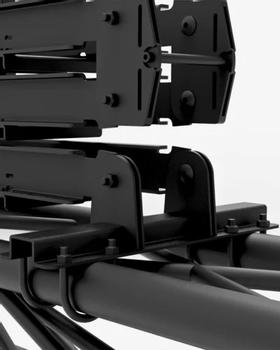

To separate power and signal cables, a divider insert can be added. The L guide can be mounted on truss 30 with U-bolts (included) and on truss 40 using a matching adapter which can be puchased separately.

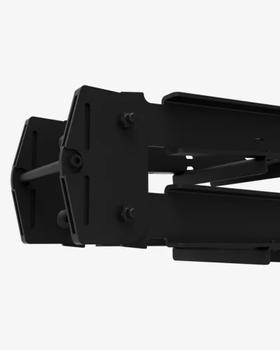

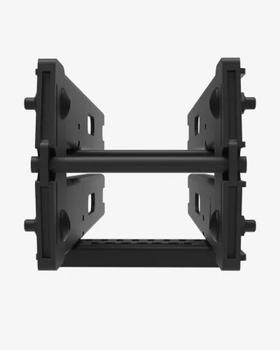

Built for durability anf versaility, the L cable guide features aluminium sections to keep the construction light and steel hinges for extra strength. The center hinge bends up to 40 degrees, while the corner hinges allow movement up to 170 degrees. A reinforcement rod in the corner hinges helps determine the correct cable length for the full length of the guide. Additionally, the top hinge has length strips to reduce sideways movement of the truss and cable guide during use.

Specifications

Base

4.5 meter

Height

24 meter

Colour

black gloss 30% (RAL 9005)

Material (length parts)

aluminium

Material (hinges)

steel

Finish

powder coated

Weight

83.5 kg

Max load

100 kg/m
