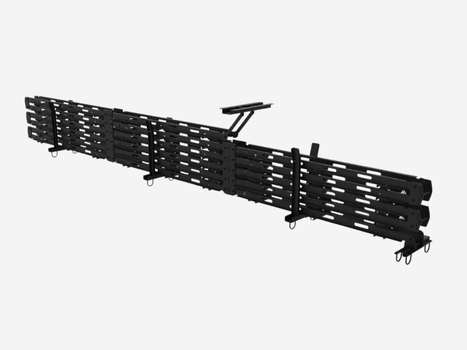

Admiral Staging L cable guide base 4.5m - H 25.5m black

The L cable guide is a practical choice for installations that require the routing of a large number of cables efficiently. With a spacious 108 mm gutter, it can accommodate numerous cables, reducing the need for extra guides. For even bigger setups, an XL version with 220 mm gutters is available.

To separate power and signal cables, the guide can be fitted with a divider insert. The L guide is compatible with truss 30 when secured with U-bolts (included) and fits truss 40 when paired with a matching adapter (available for separate purchase).

The L cable guide is built to be both durable and flexible. Its aluminum sections keep the weight low, while the steel hinges provide strength and stability. The center hinge offers up to 40 degrees of movement, and the corner hinges can bend up to 170 degrees, providing greater flexibility for various installations. A reinforcement rod in the corner hinges ensures the cables have the correct length for the full guide. To further minimize lateral movement, the top hinge is equipped with length strips.

Specifications

Base

4.5 meter

Height

25.5 meter

Colour

black gloss 30% (RAL 9005)

Material (length parts)

aluminium

Material (hinges)

steel

Finish

powder coated

Weight

87.5 kg

Max load

100 kg/m
