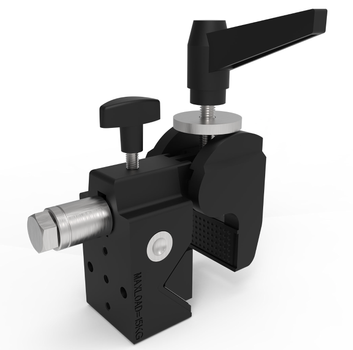

The Admiral Super clamp with integrated 16 mm spigot is a versatile mounting solution for a wide range of professional applications. Designed to clamp securely to tubes, truss systems, profiles and other structural elements with dimensions ranging from 30-51 mm, the clamp offers maximum flexibility for temporary and permanent installations.
Manufactured from durable aluminium alloy and finished with a black powder coating, the Super clamp combines strength, reliability and ease of use in a compact design. The integrated 16 mm spigot allows fixtures and accessories to be mounted quickly and securely, while the additional threaded mounting points provide further options for attaching custom brackets, equipment and accessories.
Whether used on truss structures, aluminium profiles, scenic elements or custom constructions, the Admiral Super clamp provides a fast and dependable mounting solution for the entertainment, event and installation industries.
With a Working Load Limit of 15 kg and a safety factor of 5:1, the clamp is designed to meet the demands of professional users while offering maximum versatility.
SPECIFICATIONS
WLL: 15 kg
Safety factor: 5 : 1
For diameter tube: 30-51 mm
Width: 44 mm
Material: aluminium alloy
Weight: 0.53 kg
Colour: black
Finish: powder coated
Equipment bolt: 2 x M5, 1 x M6, 1 x 16mm spigot
Standards & Approvals 1: in compliance with the Machinery Directive 2006/42/EC annex II
Standards & Approvals 2: the following harmonized standards have been applied (or parts/clauses of): EN 12100-1-2010
Standards & Approvals 3: part/clauses of the following technical regulations , standards and information papers have been used: German DGUV 17-18, German DGUV 215-313, EN 10204:2004, EN 17206 :2020, BS 7905-1 :2001
Included: 16 mm spigot
