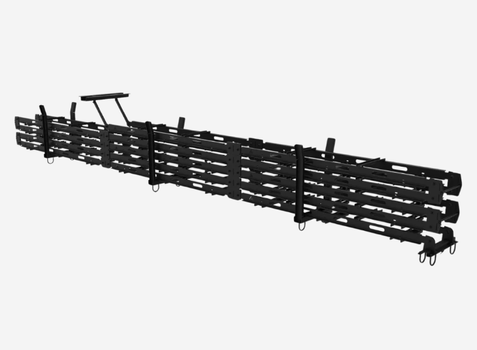

Admiral Staging XL cable guide base 4.5m - H 21m black

When your high demand installation requires the routing of many cables, this can have its challenges. For this, we have developed the XL cable guide. This guide has been designed with an extra wide gutter of 220 mm, offering you all the space you need for your cables, making sure you don't need multiple cable guides. For middle-sized operations we also offer an L version with 108 mm wide gutters. Install your L or XL cable guide on truss 30 with U-bolts or on truss 40 with a separately available matching adapter. To separate power and signal cables, a divider insert can be inserted into the XL guide.

The XL cable guide is designed to be durable, flexible and lightweight. Its sections are made of lightweight aluminium, while the robust hinges are made of steel.
The centre hinge can bend up to 40 degrees for increased flexibility and the corner hinges can move up to 170 degrees. To minimise the lateral movement of the truss and cable guide during hinge the top hinge comes with length strips. Additionally, the corner hinges come with a reinforcement rod, providing a guideline for how long the cables must be to reach the full length.

Specifications

Base

4.5 meter

Height

21 meter

Colour

black gloss 30% (RAL 9005)

Material (length parts)

aluminium

Material (hinges)

steel

Finish

powder coated

Weight

80.4 kg

Max load

100 kg/m
