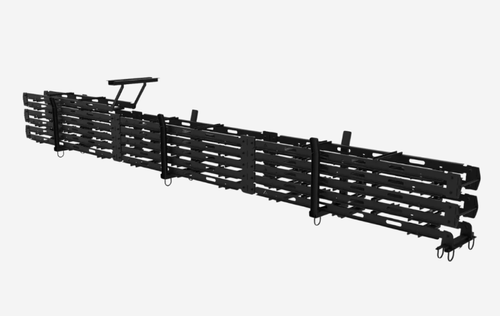

Ever needed to route a large number of cables when working with a high demand installation? Our XL cable guide is designed to make this as easy as possible. Thanks to the 220 mm wide gutter there is plenty of space for many cables at once, reducing your need for multiple cable guides. An L version is also available, featuring gutters that are 108 mm wide. Install the XL cable guide on truss 30 with U-bolts or on truss 40 using a matching adapter separately available for purchase. To keep a clear overview over your cables, it is also possible to separate your power and signal cables with a fitted XL guide divider insert. To ensure a cable guide that is flexible, lightweight and robust. We designed our XL cable guide with lightweight aluminium sections and durable steel hinges. With a centre hinge that can bend up to 40 degrees and corner hinges that can move up to 170 degrees, an increased flexibility is ensured. The corner hinges are also equipped with a reinforcement rod, which also serves as a guideline for how long the cables must be to reach the full length. Additionally, the top hinge has length strips to minimise lateral movement of the truss and cable guide during use. SpecificationsBase4.5 meterHeight24 meterColourblack gloss 30% (RAL 9005)Material (length parts)aluminiumMaterial (hinges)steelFinishpowder coatedWeight90.3 kgMax load100 kg/m
