Main Features
• Plug & play room reservation system

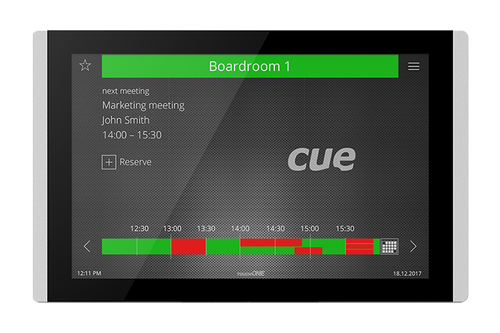

• Standalone reservation panel with intuitive user interface
• Side located green / red room status indicators
• Compatible with MS Office 365, MS Exchange and G Suite
• No additional hardware and software needed
• Room status indication, room reservation, meeting extend and finish and many other functions available from the panel
• 10.1” active color LED illumination display
• Projected capacitive touch overlay
• Built-in light and proximity sensors
• Single cable Ethernet connection with PoE
• 802.1X authentication mechanism supported
• Proxy Server support
• Advanced power saving features to reduce energy consumption
• Slim aluminium unibody enclosure, edge-to-edge front glass
• On-wall installation, suitable for glass walls
Panel Functions
• Displays room name & company logo, organizer, meeting subject, start and end time of meeting
• Room status indication by green color for free room and by red color for occupied room
• Displays current or oncoming meeting information
• Meeting details available
• Room calendar browsing for any day of the week, year
• Current meeting extension and termination
• Easy room reservation
• Search for other available rooms
• Meeting confirmation to eliminate unused reserved rooms
• Support for catering, cleaning and service requests
• Support for room occupancy sensors usage
• Support for room control system integration
• PIN code authorization
• Central administration and management
• Statistics of use of meeting rooms
Specifications
Touch-screen display
- IPS transmissive color active matrix TFT LCD with LED backlight
- Size 10.1” / 256.5 mm diagonal, wide screen
- Resolution 1 280 x 800 pixels
- Display colors 32-bit (True Color)
- Transparency 8-bit Alpha blending
- Pixel pitch 0.1695 × 0.1695 mm
- Brightness min. 300 cd/m2
- Response time 15 ms
- Contrast ratio 800 : 1
- Viewing angle 170° horizontal, 170° vertical
- Projected capacitive touch overlay
- Edge-to edge front glass
Indicators
- Left and right side located LED indicators
- Green / red indication for free / occupied room
- Indication synchronized with display user interface
Built-in sensors
- Light sensor for automatic backlight dimming
- Proximity sensor for automatic backlight switching on
Buttons
- System Default
Memory
- 512 MB RAM - microSD Card min. 8 GB
Firmware
- Dedicated room reservation application
- Admin Web for setup
Network
- 10/100 BaseT LAN, RJ-45 connector
- 802.1X authentication mechanism supported
- Proxy Server support
Power supply
- Power over Ethernet (PoE), 802.3af / Class 0 compatible
- Power consumption - 1.3 W
- screen saver mode
- 5.2 W - factory default brightness 70% - 6.3 W
- brightness 100%
- PoE Adapter can be ordered separately (product code CS0327)
Physical
- Sleek aluminium body, plastic wall adapter
- Multisurface, e.g. glass wall installation
- Compatible with VESA standard 75 mm x 75 mm
- Protection IP30
- Dimensions 268 x 167 x 25 mm / 10.6” x 6.6” x 1.0” when installed
- Weight 1.1 kg / 2.4 lb
Environment conditions
- Operating temperature 10° to 40° C
- Storage temperature 0° to 60° C
- Relative humidity 10% to 90% non-condensing
