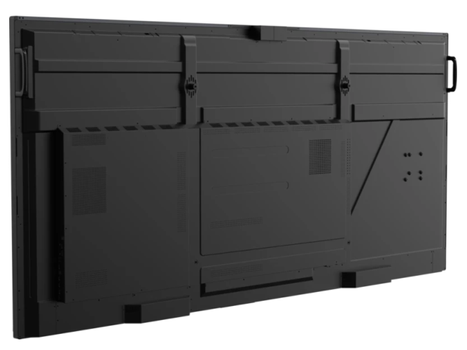

ViewSonic ViewBoard 92" 32 points touch, 7H, 5120x2160, 450nits, 8G RAM, 128GB storage, OPSx1, WiFi slotx1, HDMI-inx4, HDMI outx1, DPx1, USB-Ax7, USB-Bx3, USB-Cx2, SPDIFx1, Earphone x1, PC audio in x1, RJ45x2,

• Display

Panel Size: 92" Panel Type: TFT LCD Module with DLED Backlight, VA Display Area (mm): 2141.952(H) × 903.636(V) (91.52” diagonal) Aspect Ratio: 21:9 Resolution: WUHD 5120x2160(Pixels) Colors: 1.07G colors (8bits+ 2bits FRC) Brightness: 500nits (Typ.) Contrast Ratio: OC spec 5000:1 (typ.) Response Time: <6.5ms Viewing Angles: H = 178, V = 178 (Typ.) Backlight Life: 50,000hrs (typ.) Surface Treatment: Panel Hard Coating 3H Glass Anti-Glare + Anti-Fingerprint (7H Mohs; 9H pencil hardness) Bezel: 19.48/19.48/29.78/41.18 mm Orientation: Landscape

• Platform

Processor: RK3588 Octa-Core CPU (A76*4 + A55*4) RAM: DDR4 8GB Storage: 128GB eMMC

• Touch

Type/ Tech: IR Recognition Touch Resolution: 32767 x 32767 Touch Point: Windows: 50 Android and all other channels: 32

• INPUT

HDMI: Rear x4 (HDMI 2.1x 1, HDMI 2.0 x3) DisplayPort: 1 Audio: 1 RS232: 1 OPS: 1 (OPS Slot 80pin) WiFi: 1 (Module Slot)

• OUTPUT

HDMI: 1 Audio: 1 SPDIF: 1

• LAN

RJ45: 1 in 1 out (Android & PC 10M/100M/1000Mbps)

• USB

Type A: REAR x 1 (USB 2.0 support OTG) REAR x 2 (USB 3.2 Gen 1) FRONT x 2 (USB 3.2 Gen 1) TOP x 2 (USB 3.2 Gen 1) Type B: REAR x 3 (USB 2.0) Type C: FRONT x1 (1*PD15W + DP1.2 + Data + 10M/100M sharing, USB 3.2 Gen 1) REAR x1 [1*PD65W(65W with OPS, 100W without OPS) + DP1.2 + Data + 10M/100M sharing, USB 2.0]

• SPEAKERS

20W x 2+ 20W x 1 (Subwoofer)

• MICROPHONE

Built-in 8 Array Microphone

• COMPATIBILITY

HDMI: HDMI 1: 5120x2160 @60Hz (YUV444), 5120x2160 @30Hz (YUV420) HDMI 2/3/4: 3840x2160 @60Hz DisplayPort: 5120x2160

• Embedded OS

Android 13

• Bundled Software

Basic Annotation Software: myViewBoard Whiteboard for Android Pro Annotation Software: myViewBoard Whiteboard for Windows (embedded in VPC) Wireless Presentation: myViewBoard Display, vCast, AirSync* *myViewBoard Display will be replaced by AirSync in Q1 2025. Device Management: ViewSonic® Manager ViewSonic Launcher: Yes

• Special Features

All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels Simple LAN sharing between IFP and slot-in device: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000) Light Sensor: Yes

• Power

Voltage: 100-240VAC +/- 10% Wide Range Consumption: On: 151.24W(Energy Star) / Off: <0.5W

• ERGONOMICS

Wall Mount (VESA® ): 800 x 600

• OPERATING CONDITIONS

Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% RH non-condensing

• DIMENSIONS (W x H x D)

Physical (inch / mm): 86.73 x 39.37 x 3.62 in / 2203 x 1000 x 92mm Packaging (inch / mm): 92.52 x 44.72 x 8.5 in / 2350 x 1136 x 216mm

• WEIGHT

Net (lb / kg): 147.7lb/ 67kg Gross (lb / kg): 183lb/ 83kg

• REGULATIONS

cTUVus,FCC/ICES003,CE/EMC,CB/LVD,EAC,UkrSEPRO,UKCA,UK-EEL,LBL,FF,ErP-EEL,Green BOM,RoHS DoC,ErP-Eco,REACH DoC,SCIP,WEEE, EPEAT

• PACKAGE CONTENTS

 1. 3m power cord by ship area  2. Type C cable 1.8m(USB-IF certified)  3. Remote control with AAA battery x 2  4. 3m touch USB cable(USB 2.0)  5. Touch pen x 2 (VB-PEN-002)  6. Quick Start Guide with Compliance statement  7. RS232 adapter  8. Clamp x 5  9. Camera Plate x 2 (1 for VB-CAM-201, 1 for UMB202)  10. Screw x 8 (camera 2+2, wall mount 4)  11. HDMI cable 3m (HDMI LA certified)

• Compatible Slot-in PC

VPC3X series / VPCF5-2A
